SHORT WATER PUMP SERPENTINE

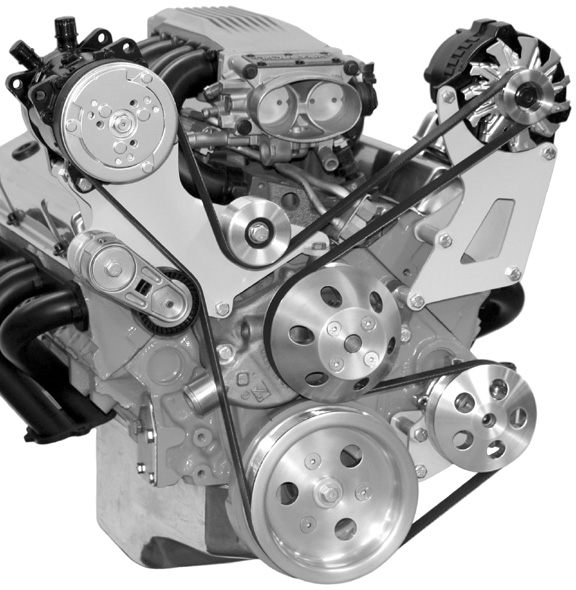

This versatile street rod style bracket system is designed for the small block Chevy using the 1984-91 Corvette reverse rotation SHORT WATER PUMP and corresponding aftermarket aluminum pulleys. Works well with most induction systems: single carbs, multiple carbs and fuel injection etc. Note: An offset thermostat housing will be required if using tuned port injection.
A.C. compressor and alternator brackets mount to water pump and accessory bolt holes in heads, and may be used on all 1969 and later GM cast iron or aluminum heads. Will clear up to 3 in. tall center bolt valve covers when used on 1987 and later heads. Will Clear up to 3 3/4 in. tall valve covers when used with 1986 and earlier heads.
Bracket system includes all necessary brackets, hardware, instructions, CNC machined aluminum idler with double row bearings and an O.E. spring loaded belt tensioner.Options for this system include: power steering bracket, Polished Aluminum Engine Pulleys and 6 rib serpentine drive belt. Please check system requirements before ordering.
You can get diagrams and detailed specifications at our website in the catalog section.
Get more details here: http://www.alangrovecomponents.com/
Alan Grove Components Manufacturer of Fabricated Steel Pulleys and Brackets, Alternator Brackets, A.C. Compressor Brackets, Power Steering Pump Brackets and more. SRMA Manufacturer or the year in 2001.
