REAR SPRING MOUNTS
These frame brackets mount Chassis Engineering Slider Springs.
Kit includes right and left front and rear spring hanger brackets.
Requires welding

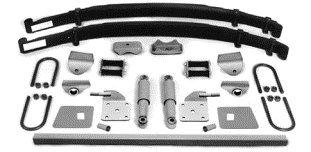

REAR END MOUNTING KIT
This universal kit Includes the above spring mounts with 4 u-bolts
with nuts, specially valved shocks, shackles, lower shock mounts
(upper not furnished) and Chassis Engineering Slider Springs. Fitting
and welding is required.
AS-0010C Rear End Mounting Kit ..... Check web site for pricing

Options For Rear End Mounting Kit
� Please specify type of rear end used.
� Specify type of spring, “REGULAR” for normal usage or
“HEAVY DUTY” for heavier loads such as sedan delivery. Add
$20.00 for heavy duty spring option.
� Kit comes with specially valved shocks, or if you prefer, gas
shocks, if so then state “GAS SHOCK OPTION” and add $18.00.

STEEL MONO LEAF SPRINGS
Meets or exceeds multi leaf specifications and is only 5/8” thick at the center. It comes with spacers so that it will fi t your crossmember and “U” bolts. These spacers may be arranged in different combinations— either above or below the spring. This allows fine tuning of the height of your car in 1/8” increments up to about an inch.
FRONT SPRINGS . . . . . REAR PARALLEL SPRINGS
28-34 Ford 35-48 Ford
48-56 F100 67-69 Camaro
35-48 Ford 49-51 Ford/Merc
48-66 Chevy Truck 48-66 Chevy Truck
55-57 Chevy
48-56 Ford Truck

LEAF SPRING BUTTON SLIDERS
Make your leaf spring into a “Slider”. Buttons snap into hole drilled in each spring end. Springs can be drilled by use of slow drill (100 RPM or less).
AU-2060 1-3/4” round slider (ea.)
AU-2061 2-1/4” round slider (ea.)

FRONT AND REAR SWAY BARS
This is an excellent way to improve the handling and overall drive-ability of the top-heavy 30’s & 40’s cars. Eliminates road sway. For best results, use front and rear bars together. Linkage and mounting hardware furnished. Upper linkage mount must be fabricated. If using a Chassis Engineering rear mounting kit -specify axle housing diameter. Front kit fits many stock width Pinto-Mustang IFS kits and swaps.
SB-0037R Rear Sway Bar kit
SB-0010PM Front Sway Bar kit

BULKHEAD FITTINGS
Takes the brake line thru the frame rail instead of around it. Stainless Steel with 1/8” pipe fittings on both ends.
AU-0071 Bulkhead Fittings- for 2" thick frame rail .

NO. 3 STAINLESS STEEL BRAKE LINES
AU-0014 12”
AU-0016 15”
AU-0018 18”
AU-0022 22”

IMPORTANT! UNIVERSAL APPICATIONS
The customer is responsible for determining the suitability of these parts. Any needed modification to the parts or car is completely at the discretion of the owner and/or installer.
