AMERICAN MADE - MATERIALS AND ASSEMBLY

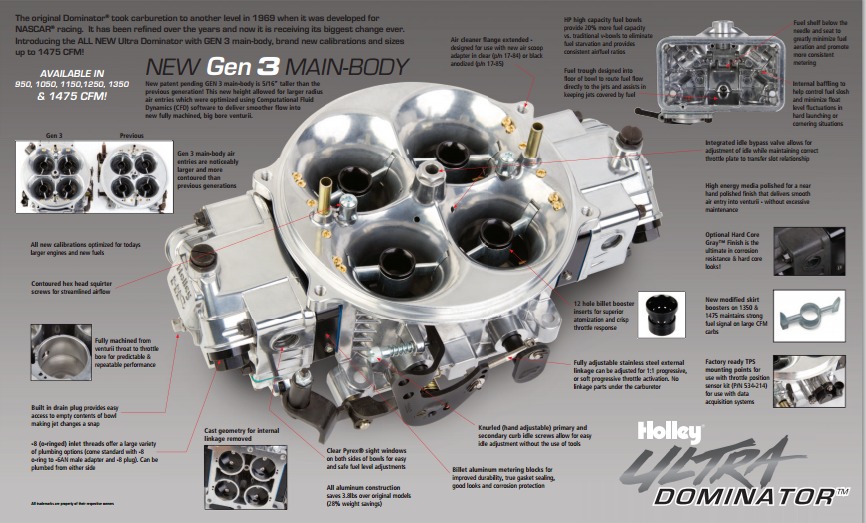

ALL NEW FUEL BOWL DESIGN
– Completely redesigned from the ground up for racing
– 20% more fuel capacity vs. a traditional v-bowl eliminates fuel starvation and provides consistent air/fuel ratios
– Internal baffling to help control fuel slosh and minimize float level fluctuations in hard launching or cornering situations
– Fuel shelf below the needle and seat to greatly minimize fuel aeration and promote more consistent metering
– Fuel trough designed into floor of bowl to route fuel flow directly to the jets and assist in keeping jets covered by fuel
– Clear Pyrex® sight windows on both sides of bowls for easy and safe fuel level adjustments
– (A) Built in drain plug in front center of bowl provides easy access to empty contents of bowl
– (B) Contoured entry provides smooth fuel flow directly to needle & seat
– -8 (o-ringed) inlet threads offer a large variety of plumbing options (come standard with -8 o-ring to -6AN male
adapter and -8 plug). Can be plumbed from either side
– Material added in key areas (needle & seat area, fuel inlet, sight window area) for added strength in the demanding race environment
6061T6 BILLET ALUMINUM METERING BLOCKS
– Improved durability, true gasket sealing (sealing surface integrity), bright dipped anodized for good looks &
corrosion protection
– Fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors). Power valve channel restrictors
now machined lower in metering block for improved fuel delivery to power valve circuit
– Accelerator pump channel now internally drilled eliminating need for external plug
– Excess material removed for improved fuel capacity
– New snap-in-place bowl vent whistle makes removal and/or replacement easier
Holley was founded in 1903 around the advent of the automobile and has been a supplier to every major American OEM automobile manufacturer. Holley supplied half of the fuel systems in WWII including those for land vehicles, marine and aircraft. Its primary focus today is in the high performance aftermarket where its world famous carburetion has won more races than all others combined. Holley is proactive in stredeveloping EFI systems for et users and professional racers alike.
For more information contact Holley Performance Products,
1801 Russellville Road, Bowling Green, KY 42101.
Phone (270)782-2900
