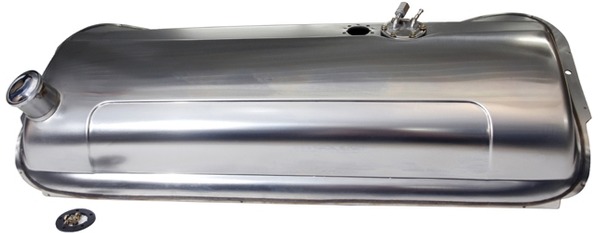

Die-Stamped STAINLESS STEEL
- Reproduction of the Original Tank
- 16 gauge Stainless Steel 304 Grade
- Pickup Tube & Vent - Top-Mounted as Required by the Federal Code of Regulations
- Internal Reservoir Tray - Great for Carbs...Absolutely Necessary for Fuel Injection
- Stock Dimensions
- Stock 11 Gallon Capacity
- Overall Size: 39" x 17" x 9"
- Includes Non-Vented Cap
- Fully Baffled Fuel Tank
-
Vented Tank
This Fuel Tank uses the GPA Series In Tank Fuel Pump.

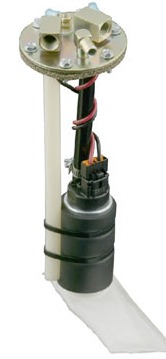

In-Tank Fuel Pump Module - GPA-Series
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed fittings
- 40-100 PSI
- In-tank wire harness
The GPA-Series Fuel Pump Module is designed to be used in many of our die-stamped alloy-coated and stainless steel gas tanks that have factory-installed reservoir trays. The tray is an absolute necessity for fuel-injection in order to prevent fuel starvation when accelerating and cornering.
We use Walbro high-performance pumps in all of our modules, and we offer two different operating ranges in order to supply up to approximately 600 horsepower. The internal wiring harness, supply line, return line, filter sock and insulator sleeve are included.
The heavy 10-gauge no-warp mounting plate contains fittings for the supply, the return, the vent and the electrical connector. It is yellow-zinc plated to prevent corrosion.
TANKS, INC. has been a leader in the street rod industry, receiving various awards for safety and innovation. In addition, it was the first to introduce style into street rod gas tanks; radiused edges, die-stamped openings, flush-mounted fittings, indented panels and slotted mounting flanges, just to name a few. It was also the first on the block with a true reproduction Deuce tank, though many had tried and failed. Their exclusive "Baffle-Tunnel" made polyethylene gas tanks a viable choice for the rodder. To top it off, the company holds three patents in the automotive field, two of them for gas tanks.
