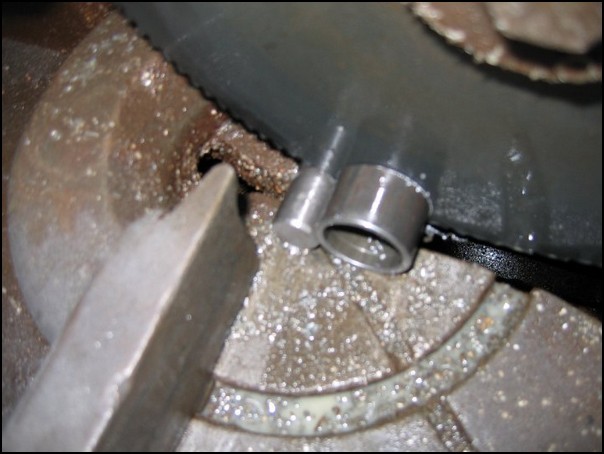

Welder Series' Sway Bar Kits are available 36" and 46" wide, but can be cut down (with hack saw) to any length. The bar is ¾” diameter 4142 cold finished, heat treated, with one end splined ¾-36. The other end of the bar is smooth. This smooth end gets pinned and welded into a coupler which welds to one of the arms. The laser-cut, 3/8″ thick arms are 8″ center-to-center.

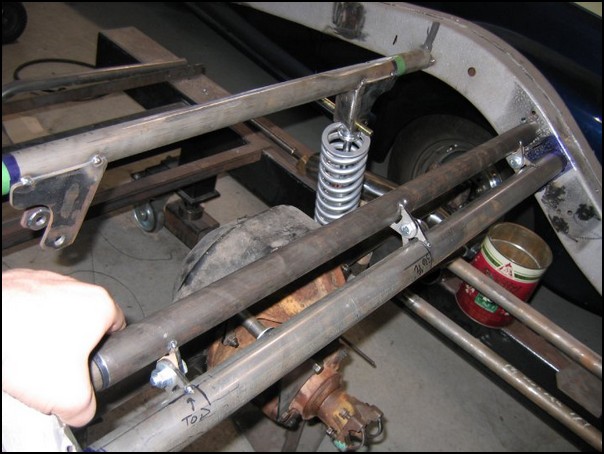

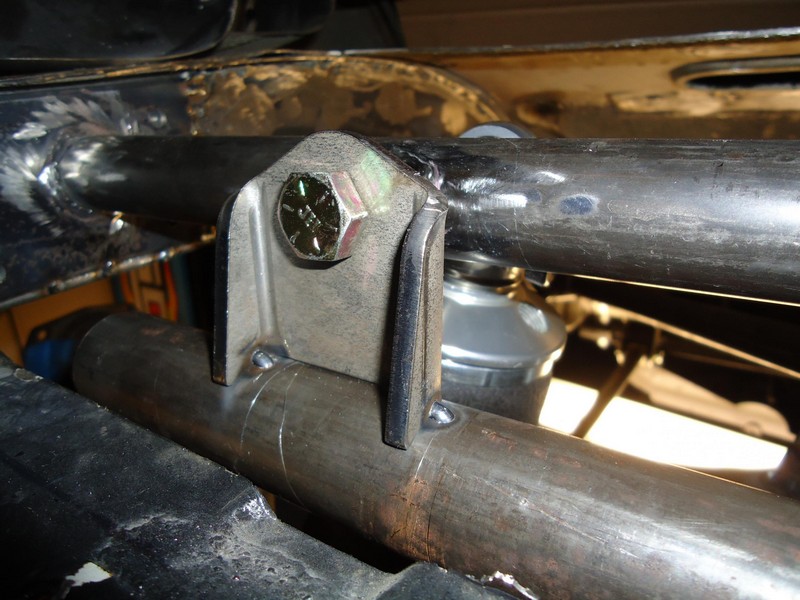

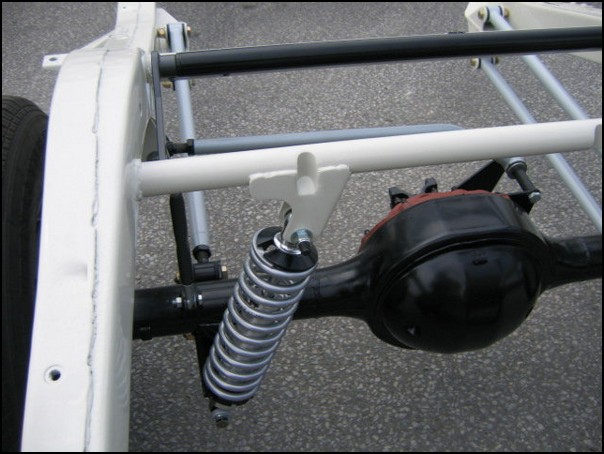

Formed tabs weld to the outer tube and connect the bar to the rear crossmember using the coil-over bolts. Urethane bushings insulate road vibration. Rod ends connect the arms to the tabs that weld to the rear end. Overall length is ¾” longer than the bar length, since the 3/8″ arms mount outside the ends of the bar. The arms can be bent to clear the coil-overs.
To mount the sway bar to a crossmember tube without coilover bolts, see the video below. To order a kit like this, simply add a comment in the order check-out.
NEW: One more mounting option has been added: a bracket bolts to the lower coil over holes in the axle bracket and mounts the tube under the axle. Tabs weld to the bottom of your frame rail to mount the heim joints. Depending on your ride height, a male heim joint can be used on either end of a 3/8-24 threaded spacer tube. Check out the photos to see more.

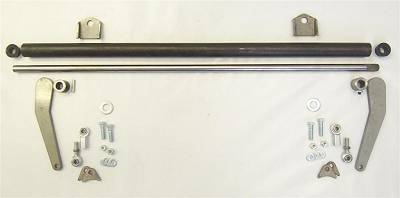

The Model A sway bar kit includes a 46″ trim-to-fit sway bar with 3/4-36 splines on one end and no splines on the other end. Trim the bar to the exact length you need, then weld the smooth coupler and the arm to one end. Slip the bar through the outer tube and attach the splined coupler arm to the opposite end. The outer tube goes through the frame rails ahead of the rear end. The arms link to a formed bracket that bolts to the rear axle 4-link side plate. See the photos for more info.
If you want a custom length bar, splined on both ends, that is available now, too. Maximum length 46″.

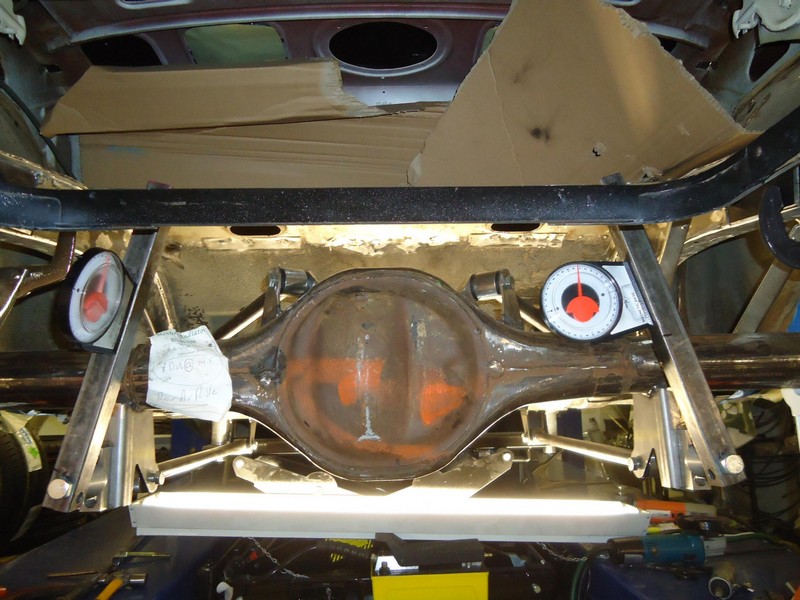

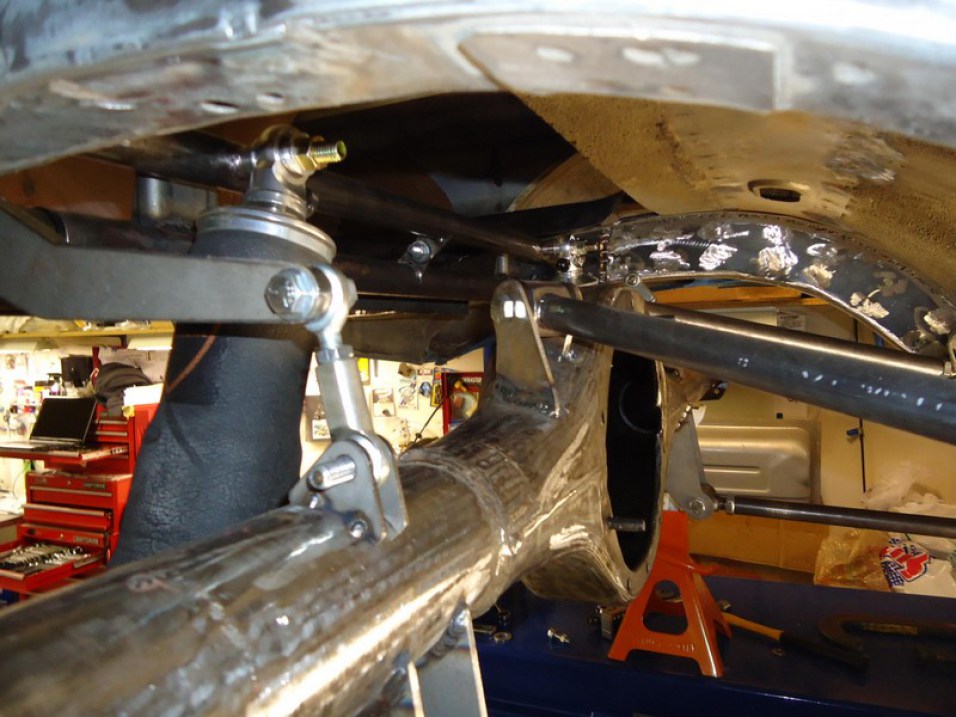

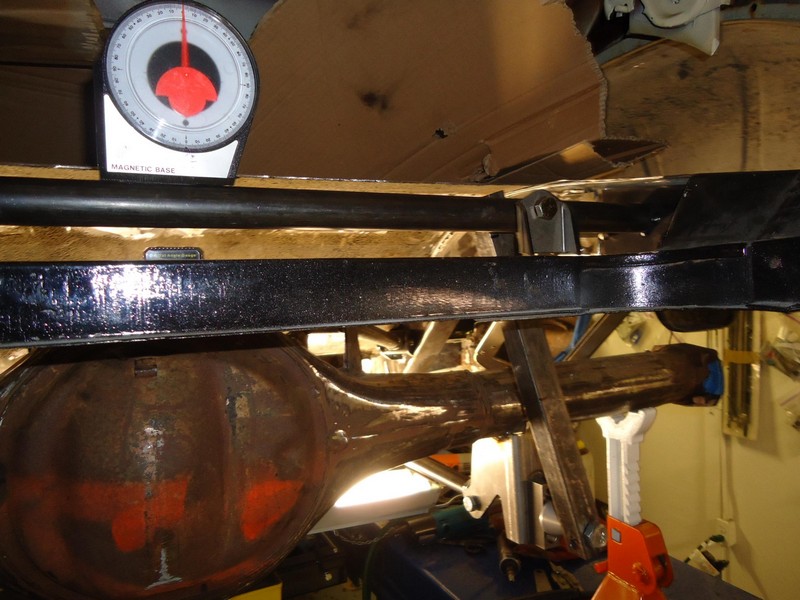

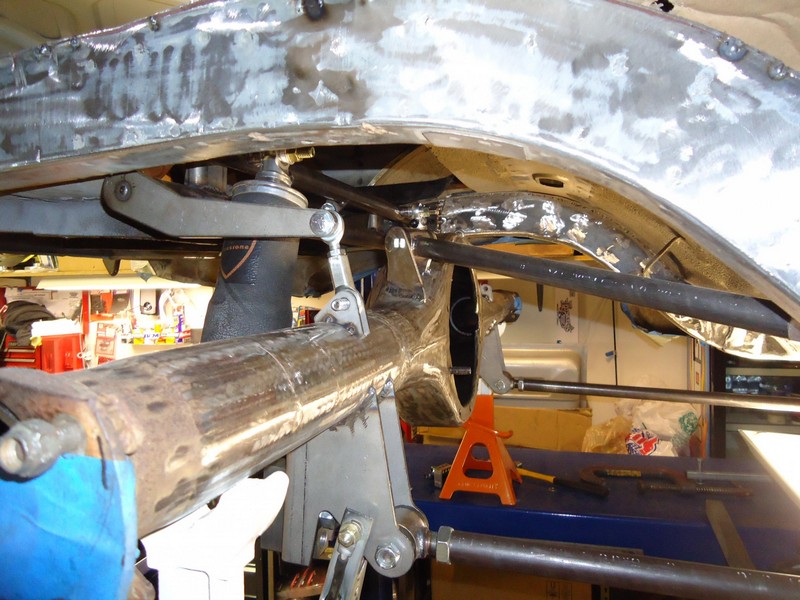

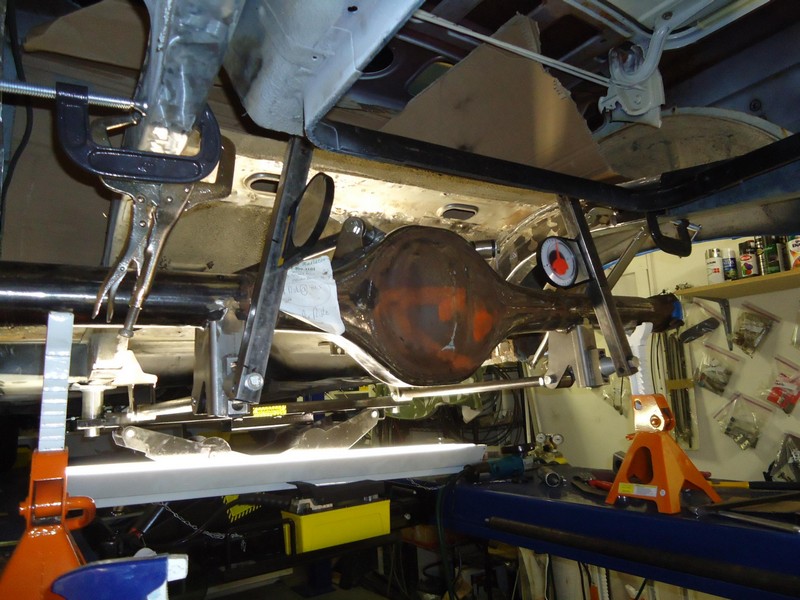

The following photos display installation on a 1964 Comet:

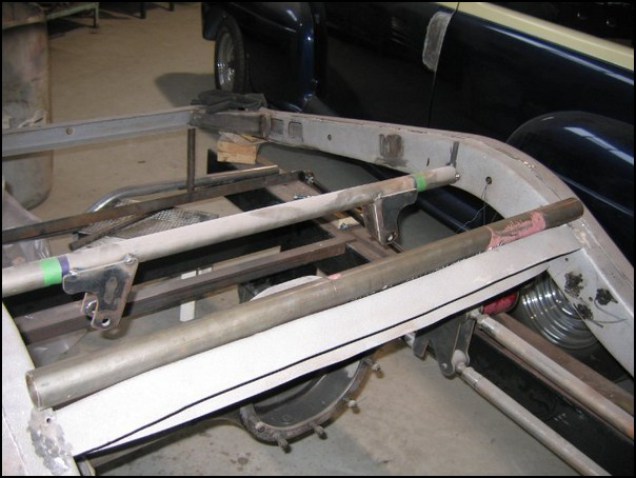

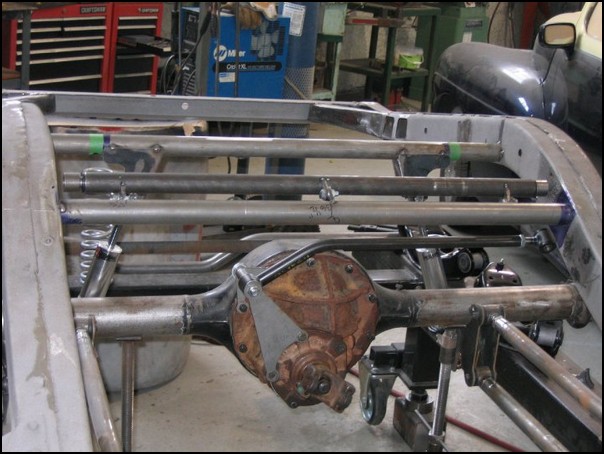

The following photos display installation on a 1955 Ford:
As labor is usually a large part of the cost of any project, the more labor you can provide yourself, the less dollars the project will cost. The unique idea behind Welder Series ready-to-weld kits is that if you can weld, you can make professional quality kits using our parts. Everything comes in the box except the welding. Assembly sheets show and tell how the kit components go together and installation sheets show how to position the part in your project. Our parts are also available completely welded. DW Horton welds parts in-house, to maintain high quality standards. Every Welder Series kit is welded by the same person…
